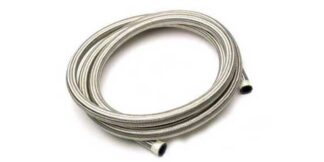

Stålbunnet armert slange sølv

AN-04 ID 5,4mm (7/32“) OD 11,2mm (7/16“) Operating press 1000PSI
AN-06 ID 8,7mm (11/32“) OD 14,2mm (9/16“) Operating press 1000PSI
AN-08 ID 11,1mm (7/16“) OD 17,1mm (11/16“) Operating press 1000PSI
AN-10 ID 14,2mm (9/16“) OD 20,8mm (53/64“) Operating press 1000PSI
AN-12 ID 17,4mm (11/16“) OD 24,4mm (31/32“) Operating press 1000PSI
AN-16 ID 22,2mm (7/8“) OD 30,5mm (13/64“) Operating press 750PSI
AN-20 ID 28,5mm (1-1/8“) OD 35,81mm (1-13/32“) Operating press 500PSI
ID=innvendig diameter OD= Utvendig diameter.
